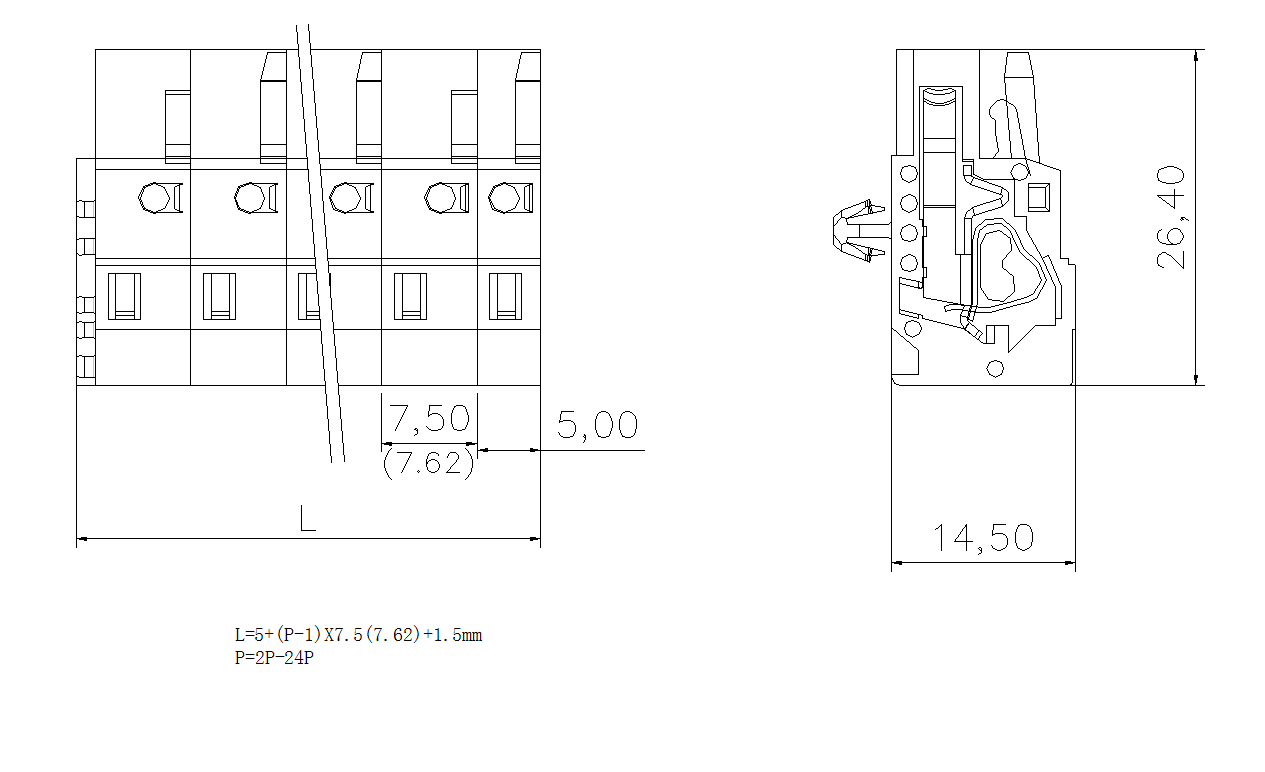

TCWZ 7.5G-7.62 Series Angled Pin Socket
model | TCWZ7.5G-XXP;TCWZ7.62-XXP | ||
bit spacing | 7.5mm/7.62mm | ||
number of digits | 2-24P | ||
Technical data | IEC | UL | |
Rated voltage | V | 400 | 300 |
Rated current | A | 12 | 10 |
Rated impulse voltage | KV | 6 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃~+105℃ | ||
can choose colour | 7.5 pitch (grey); 7.62 pitch (orange) | ||
Contact material | tinned copper | ||
Solder pin size | 1.0*1.0mm | ||
